Blowers, Dual Inlet, Technical nta Txheej txheem cej luam
Ua haujlwm ntsiag to thiab ruaj khov Anti-Vibration Housing
PBM blowers, nrog rau pem hauv ntej nkhaus impeller, compact EC lub cev muaj zog tsau thiab muab tso rau ntawm qhov chaw nruab nrab, nrog optimized dual inlet scroll vaj tsev.
Cov kiv cua tuaj yeem ntsia tau ntawm txhua qhov kev qhia nrog cov txiv ntseej riveting ruaj khov ntawm cov vaj tse hlau nplhaib, thiab ua kom zoo dua radial scroll vaj tse tsim kom ua haujlwm ntsiag to ntawm cov neeg siv khoom thov ua haujlwm hauv lawv lub qhov cua duct lossis chav tsev ntawm cov khoom sib txawv, xws li galvanized hlau, txhuas, tooj liab, PE, PVC, polyfoam thiab lwm yam.
AC thiab DC fais fab mov muaj rau tag nrho cov kiv cua nrog kev sib koom ua ke thiab kev txawj ntse EC thev naus laus zis lub cev muaj zog nrog sab hauv lossis sab nraud mounted thoob ntiaj teb tus qauv chaw taws teeb tswj R485 kev sib txuas lus raws tu qauv uas tsim nyog tau txais hauv IoE (Internet ntawm Txhua Yam), IoT (Internet ntawm Yam), ntse hauv tsev, Kev lag luam 4.0 thiab cog lus rau Carbon Neutrality carbon climate change los ntawm kev txo cov neeg siv khoom.
PFC(Power Factor Correction), up to λ>96%, yog xaiv tau rau hluav taws xob grad stabilization ua raws li qee qhov xwm txheej ntawm daim ntawv thov. ErP2015 (Energy-cov khoom lag luam ntsig txog) Cov lus qhia ua raws, COMMISION REGULATION (EU) Tsis muaj 327/2011 ntawm 30 Lub Peb Hlis 2011 ua raws li Cov Lus Qhia 2009/125/EC ntawm European Parliament thiab ntawm Pawg Sab Laj hais txog eco{ntxhais kev xav tau ntawm cov kiv cua ntawm lub zog hluav taws xob{10} 125 W thiab 500 kW.
Impeller Loj:Los ntawm 133mm mus rau 280mm txoj kab uas hla;
Suab Level:Los ntawm 64dBA mus rau qhov siab tshaj plaws 78dBA raws li kev sib hloov ceev;
Airflow:Qhov siab tshaj plaws rau 4,100CMH, Cubic Meter ib Teev, sib npaug rau kwv yees li . 2,412CFM , Cubic Feet ib feeb;
Cua Siab:Maxim rau 1,000Pa, sib npaug rau 102mm H2O thiab mus rau 4 nti H2O;
Lub zog:Qhov siab tshaj plaws lub cev muaj zog input zog mus rau 1,050W (sib npaug rau 1.43hp, horsepower) ntawm lub cev muaj zog inch 138mm.
EC Blower Dual Inlet D (133-280)
Daim ntawv thov
Cov Khoom Siv Hluav Taws Xob Hauv Tsev
Nyob ntsiag to, ua kom txias txias rau cov khoom siv hauv tsev. Tsis tshua muaj suab nrov, ntev -lub neej, nyab xeeb thiab txhim khu kev qha rau ACs, tub yees, purifiers, thiab khoom siv hauv chav ua noj.
Precision txias rau IT thiab electronics. Siab zoo li qub, tsis tshua muaj kev vibration, huv si airflow rau servers, cia, thiab huv chav ua haujlwm.
Silent, xis airflow rau lub rooj zaum cua. Tsis tshua muaj suab nrov, kev ua haujlwm siab, tsim qauv, txhim khu kev tsav tsheb thiab ua kom cov rooj zaum qhuav.
-
![133 hli EC - AC Dual Inlet Blower PD3N133B2EM]()
133 hli EC - AC Dual Inlet Blower PD3N133B2EMPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![133 hli EC - DC Dual Inlet Blower PD3N133B24U]()
133 hli EC - DC Dual Inlet Blower PD3N133B24UPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![133 hli EC - DC Dual Inlet Blower PD3N133B48U]()
133 hli EC - DC Dual Inlet Blower PD3N133B48UPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![146 hli EC - AC Dual Inlet Blower PD3N146B2EH]()
146 hli EC - AC Dual Inlet Blower PD3N146B2EHPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![146 hli EC - DC Dual Inlet Blower PD3N146B24H]()
146 hli EC - DC Dual Inlet Blower PD3N146B24HPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![146 hli EC - DC Dual Inlet Blower PD3N146B48H]()
146 hli EC - DC Dual Inlet Blower PD3N146B48HPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-

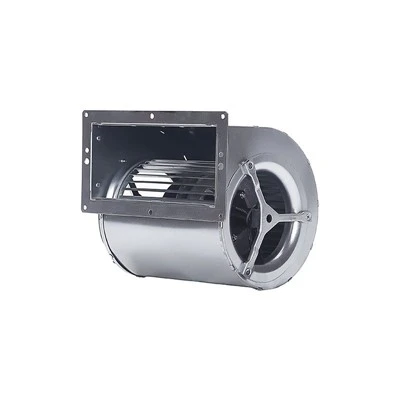

![180 hli EC - AC Dual Inlet Blower PD3N180B2EM]()
180 hli EC - AC Dual Inlet Blower PD3N180B2EMPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![200 hli EC - AC Dual Inlet Blower PD3N200B2EM]()
200 hli EC - AC Dual Inlet Blower PD3N200B2EMPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![225 hli EC - AC Dual Inlet Blower PD3N225B4EM]()
225 hli EC - AC Dual Inlet Blower PD3N225B4EMPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![250 hli EC - AC Dual Inlet Blower PD3N250B4EM]()
250 hli EC - AC Dual Inlet Blower PD3N250B4EMPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
-
![280 hli EC - AC Dual Inlet Blower PD3N280B4EM]()
280 hli EC - AC Dual Inlet Blower PD3N280B4EMPBM tsom rau EC Ntxuam nkaus xwb. Daim ntawv pov thawj: CE, UL, ROHS; Muaj peev xwm muab khoom: 100,000 pcs hauv ib xyoos; MOQ: 1 ~ 100 pcs raws li tus nqi EXW; 100 pcs saum toj no raws li tus nqi
FAQ
Q: Kuv yuav xaiv qhov zoo dual inlet blower li cas?
A: Thaum xaiv ib lub tshuab hluav taws xob dual, cov neeg yuav khoom yuav tsum ntsuas:
● Yuav tsum muaj cua ntws (CFM lossis m³ / h)
● Static siab xav tau
● Installation qhov ntev
● Lub cev muaj zog (AC lossis EC lub cev muaj zog)
● Voltage thiab zaus
● Kev txwv tsis pub muaj suab nrov
● Kev ua haujlwm ib puag ncig
● Lub hom phiaj ntawm kev siv hluav taws xob
Kev tshuaj xyuas lub tshuab blower kev ua haujlwm nkhaus pab ua kom muaj qhov sib txuam thiab ua haujlwm tau zoo.
Q: Dab tsi yog qhov zoo ntawm ob lub inlet blower?
A: Dual inlet blowers muaj ntau yam zoo, suav nrog:
● Ntau dua airflow ntim
● Ntau qhov sib npaug ntawm cov cua ntws tawm
● Kev ua haujlwm siab zoo li qub
● Cov qauv tsim rau kev siv dav hlau loj
● Txhim kho qhov cua kom zoo
● Txhim khu kev ruaj ntseg txuas ntxiv - lub luag haujlwm ua haujlwm
Cov txiaj ntsig no ua rau lawv siv dav hauv kev lag luam thiab kev lag luam qhov cua tshuab.
Q: Puas tuaj yeem muab ob npaug rau inlet blowers customized?
A: Yog. Ntau lub tuam txhab muab kev kho dual inlet blower kev daws teeb meem rau OEM thiab kev lag luam ua haujlwm. Customization xaiv yuav muaj xws li:
● Airflow thiab siab specifications
● AC lossis EC lub cev muaj zog xaiv
● Voltage thiab zaus
● Kev tswj ceev ceev kev koom ua ke
● Mounting qauv
● Corrosion-cov ntaub ntawv tiv taus
● Kev txo suab nrov kom zoo
● Kev hloov kho vaj tse thiab impeller tsim
Customized blowers yog dav siv nyob rau hauv tshwj xeeb qhov cua thiab cua txias tshuab.
Q: Dab tsi yog qhov txawv ntawm ob lub inlet blower thiab ib qho inlet blower?
A: Qhov sib txawv tseem ceeb yog airflow muaj peev xwm thiab kev siv cov qauv. Ob lub inlet blower rub tawm cua los ntawm ob sab ntawm lub impeller, thaum ib qho inlet blower rub tawm cua los ntawm ib sab. Dual inlet blowers feem ntau nyiam rau:
● Cov kev xav tau ntau dua airflow
● Loj HVAC systems
● Cua tuav units (AHU)
● Kev lag luam cua tshuab
● Cov ntawv thov yuav tsum muaj kev sib npaug ntawm cov cua ntws
Ib leeg inlet blowers feem ntau yog siv nyob rau hauv compact systems nrog nruab nrab airflow xav tau kev pab.
Q: Qhov twg yog dual inlet blowers feem ntau siv?
A: Dual inlet blowers feem ntau siv hauv:
● HVAC systems
● Cua tuav units (AHU)
● Ntxuam coil units (FCU)
● Muaj qhov cua tshuab
● Cov khoom siv cua tshuab ua lag luam
● Cua purification systems
● Cov khoom siv tub yees
● Data center cua txias tshuab
Lawv lub peev xwm airflow siab ua rau lawv haum rau loj - daim ntawv thov cua tshuab.
PBM Tsav thiab Ntxuam (Suzhou) Co., Ltd. Thov so assured mus yuav customized dual inlet blower ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Txais tos tiv tauj peb rau kev hais lus.
